Features & Specifications
|
GENERAL & CERTIFICATIONS
|
Model |

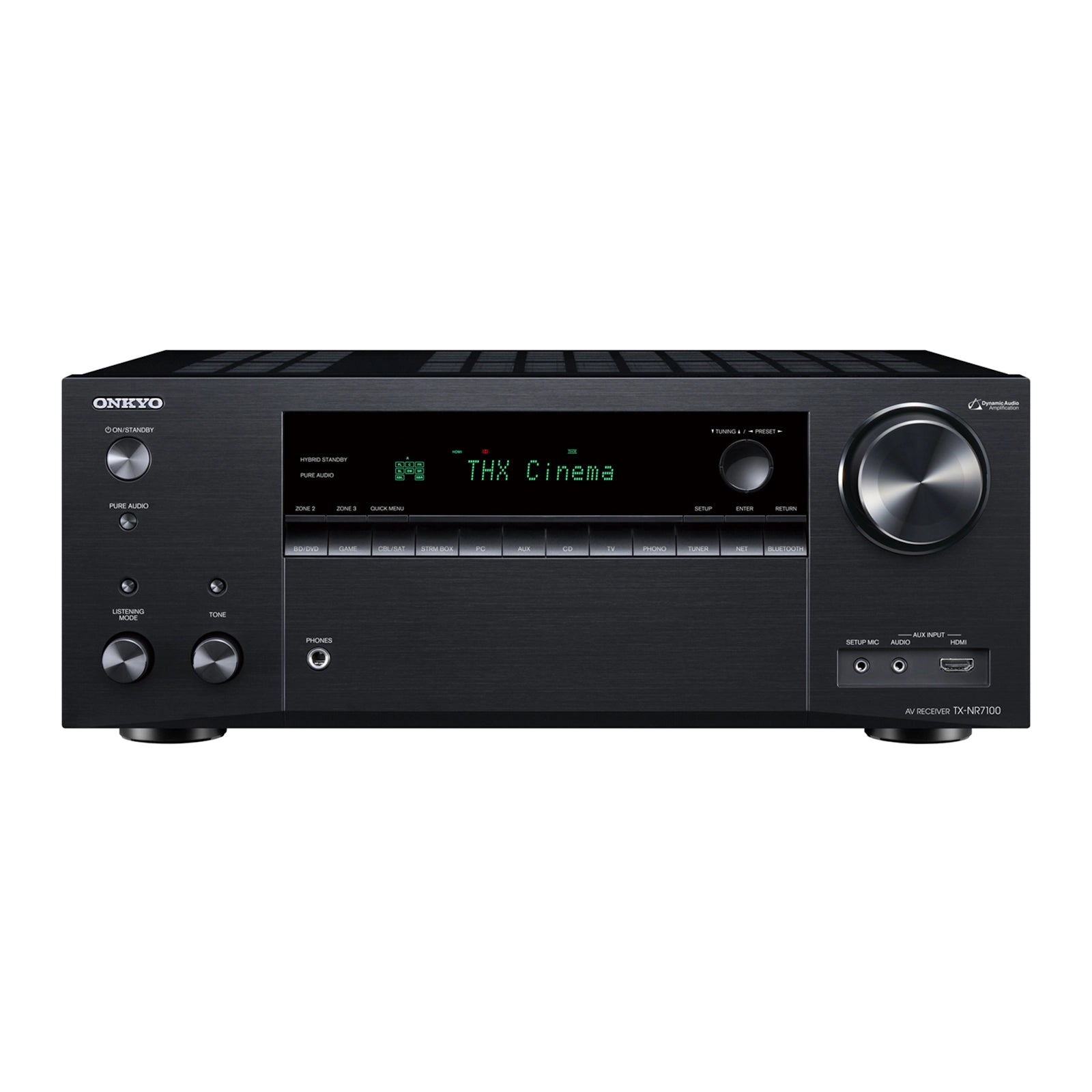

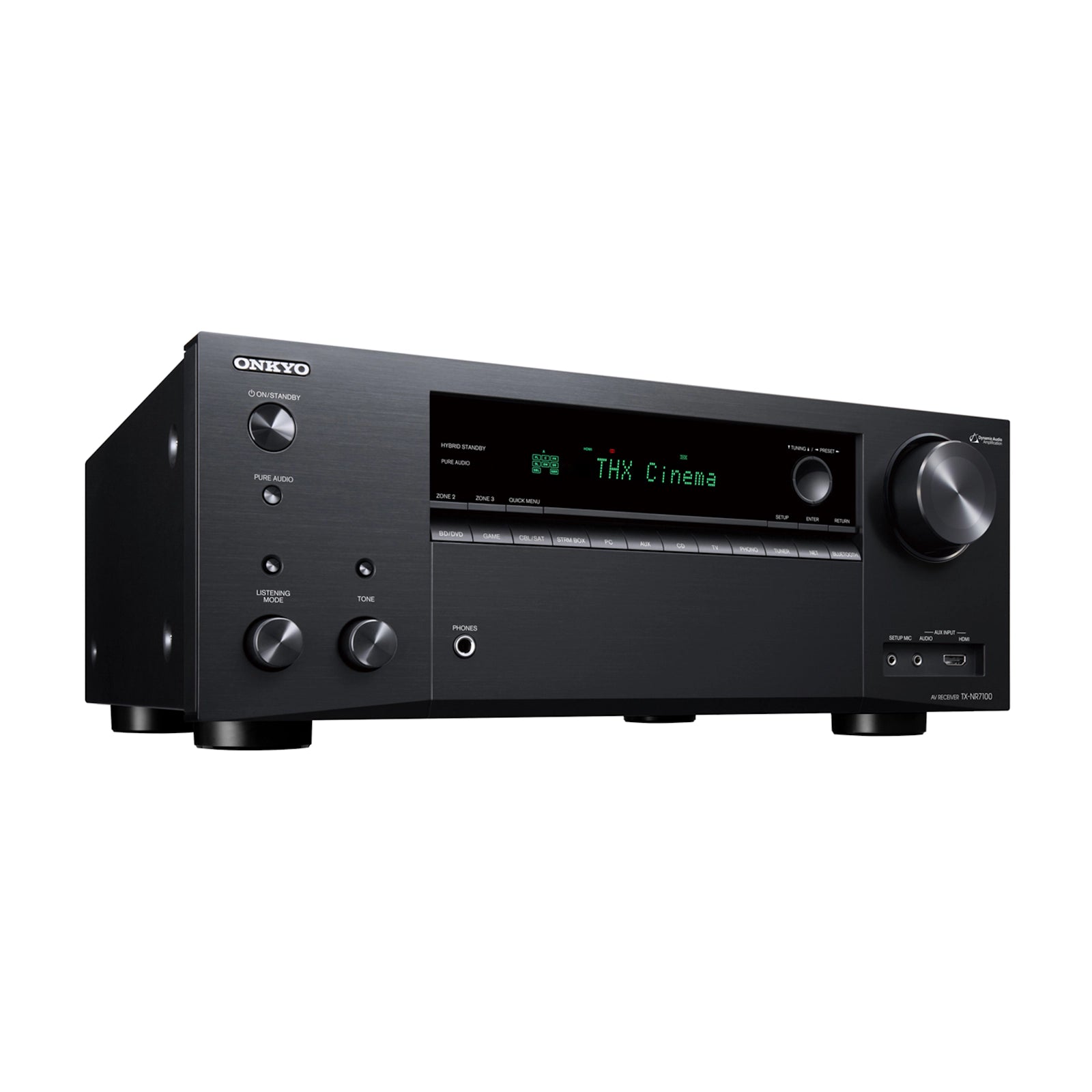

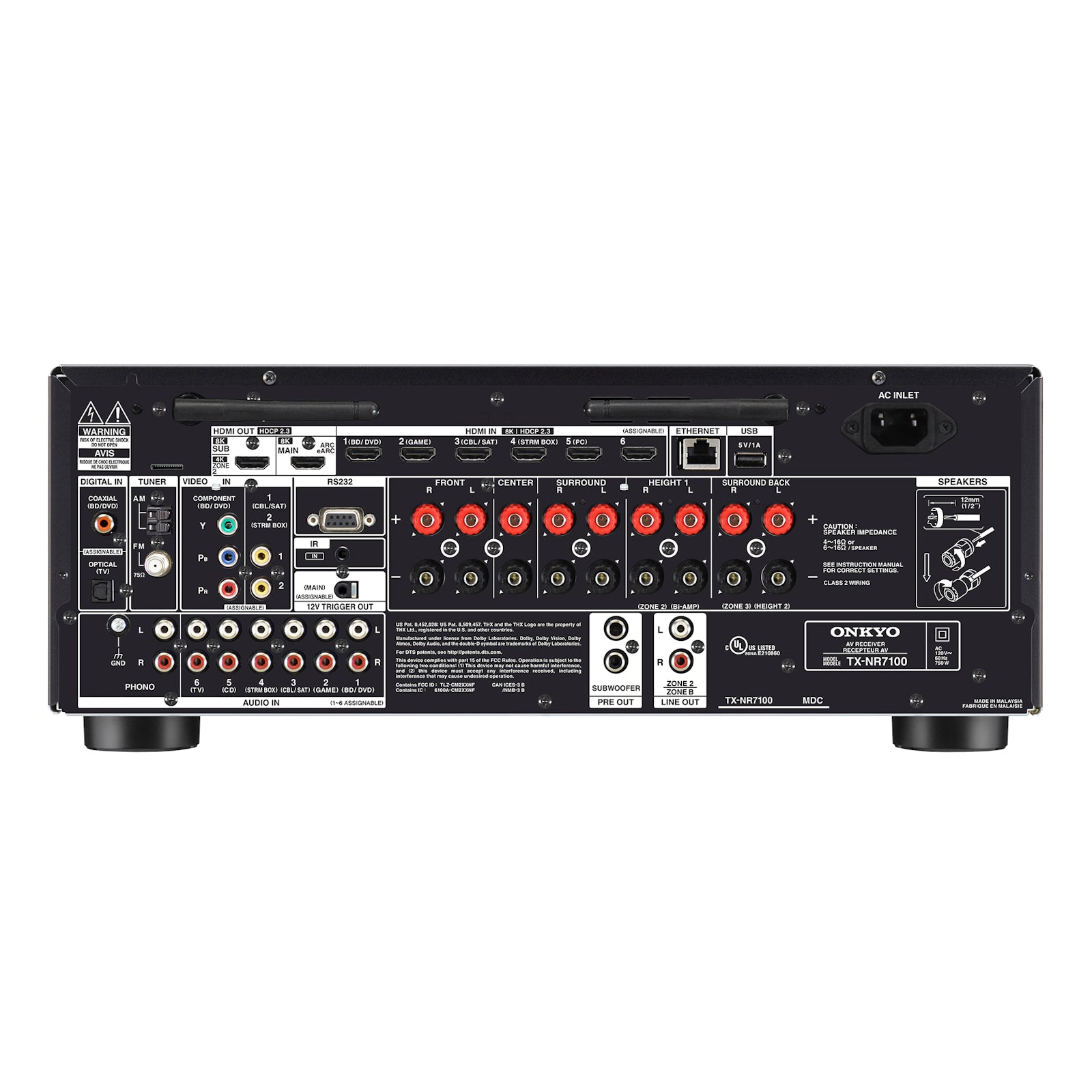

Onkyo TX-NR7100 |
Amplifier Configuration |
9.2-channel powered, supports 5.2.4 or 7.2.2 layouts |
Certifications |
THX® Select2, IMAX Enhanced |
POWER & AMPLIFICATION
|
Power Output |
100 W ch (8 Ω, 20 Hz–20 kHz, 0.08 % THD, 2 ch driven) |
Dynamic Power |
210 W (6 Ω, 1 kHz, 10 % THD) |
VIDEO & HDMI
|
HDMI Connectivity |
6× HDMI 2.1 inputs (1–3: 40 Gbps, 4–6: 24 Gbps); 2 HDMI outputs (Main & Zone 2)
with 8K/60, 4K/120, eARC, VRR, ALLM, QFT, QMS, DSC support
|
HDR & Format Support |
HDR10, HDR10+, Dolby Vision, HLG, BT.2020, HDCP 2.3 |
AUDIO PROCESSING
|
Immersive Audio Formats |
Dolby Atmos, DTS:X, Dolby Atmos Height Virtualizer, DTS Virtual:X, DTS Neural:X, Dolby Surround, DTS HD Master Audio |
Audio Enhancements |
AccuReflex phase alignment for Atmos; Game Sound Modes; vocal/dialog DSP enhancement |
ROOM CORRECTION & CALIBRATION
|
Room Correction |
Built-in Dirac Live® room correction; supports auto speaker setup and EQ |
CONNECTIVITY & STREAMING
|
Streaming Services & Network |
Wi-Fi (dual-band), Bluetooth (bidirectional), Chromecast Built-in, AirPlay 2, Spotify, TIDAL, Pandora, TuneIn, Works with Sonos, DTS Play-Fi |
ZONE & MULTI-ROOM
|
Multi-Zone Capability |
Main 5.2 + powered Zone 2 and Zone 3; synchronized or independent playback; HDMI switching for Zone 2 |
CONTROL & SMART HOME
|
Smart Home Integration |
Voice control via Alexa, Google Assistant, AirPlay 2, Chromecast, Sonos certification; integrates via Onkyo Control app |
PHYSICAL SPECIFICATIONS
|
Dimensions (W × H × D) |
435 × 174 × 379 mm |
Weight |
10.5 kg |
