Features & Specifications
|
GENERAL & CERTIFICATIONS
|
Model |

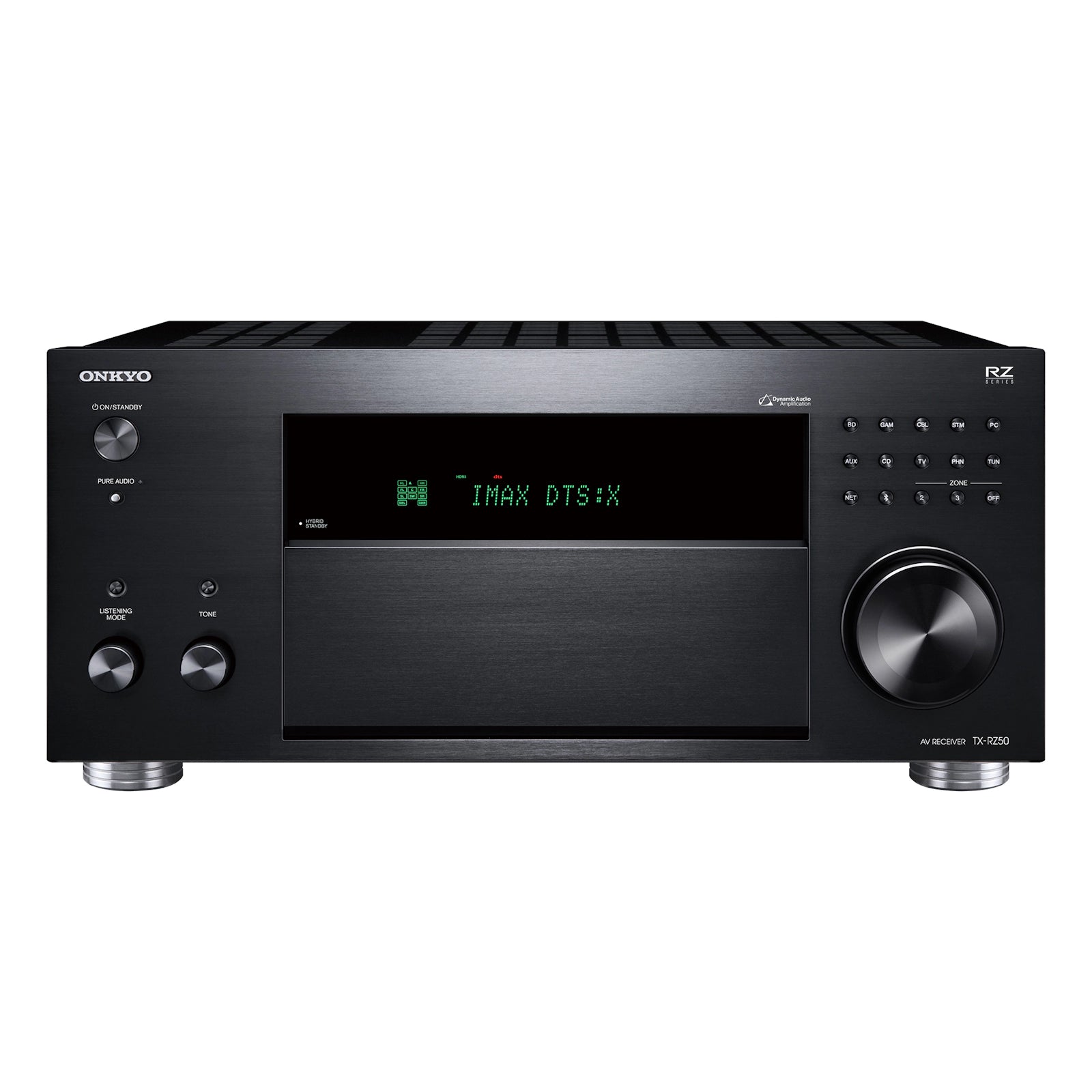

Onkyo TX-RZ50 |
Channel Configuration |
9.2-channel powered (supports up to 11.2 processing for 7.2.4 setups) |
Certifications |
THX® Select2, IMAX® Enhanced |
AMPLIFIER & PERFORMANCE
|
Power Output (All Channels) |
120 W per channel (8 Ω, 20 Hz–20 kHz, 0.08 % THD, 2-ch driven) |
Frequency Response |
5 Hz – 100 kHz (±1 dB) in Direct mode |
ROOM CALIBRATION
|
Room Correction |
Dirac Live full-bandwidth with optional Bass Control; includes AccuReflex for height speaker phase-alignment |
VIDEO & HDMI FEATURES
|
HDMI Connectivity |
6× HDMI 2.1 inputs (1-3 support 40 Gbps), 3× HDMI outputs including Sub/Zone 2 output, eARC |
Video Formats & Gaming |
8K/60p, 4K/120p, HDR10+, Dolby Vision™, BT.2020, VRR, ALLM, QFT, DSC, QMS, HDCP 2.3 |
AUDIO & IMMERSIVE FORMATS
|
Immersive Audio Formats |
Dolby Atmos, DTS:X, Dolby Atmos Height Virtualizer, DTS Neural:X, Dolby Surround, DTS HD Master Audio, IMAX Enhanced |
Enhancements |
Klipsch Optimize Mode, Game Sound Modes, DSP Vocal Enhancer |
CONNECTIVITY & STREAMING
|
Streaming Services & Network |
Works with Sonos, Chromecast built-in™, AirPlay 2, DTS Play-Fi®, Spotify®, Amazon Music HD, TIDAL, Deezer, TuneIn |
Bluetooth |
Bi-directional (SBC, aptX™, aptX HD); stream to/from headphones/devices |
ZONE & PROCESSING
|
Multi-Zone Capability |
11.2 channels processing, pre-outs for 7.2.4; powered Zone 2/3 with stereo line-outs |
PHYSICAL & POWER
|
Dimensions (W × H × D) |
435 × 201.5 × 398 mm |
Weight |
14.0 kg |
Power Consumption |
850 W (operating), 75 W (idle), <0.1 W (standby) |
