Features & Specifications
|
|
AUDIO & AMPLIFIER
|
| Channels |
5.2 |
| Rated Power |
80 W per channel (6 Ω, 0.06% THD, 2-ch driven) |
| Maximum Power |
115 W (6 Ω, 1 kHz, 0.9% THD) :contentReference[oaicite:0]{index=0} |
|
SURROUND PROCESSING & DSP
|
| Cinema DSP |
Yes – 17 DSP programs |
| Dialog Level Adjustment |
Yes |
| Virtual Presence Speaker |
Yes |
|
AUDIO FORMATS & PROCESSING
|
| Supported Formats |
Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio :contentReference[oaicite:1]{index=1} |
| Hi-Res & File Support |
FLAC/WAV/ALAC up to 192 kHz/24-bit, DSD up to 11.2 MHz :contentReference[oaicite:2]{index=2} |
|
VIDEO & HDMI FEATURES
|

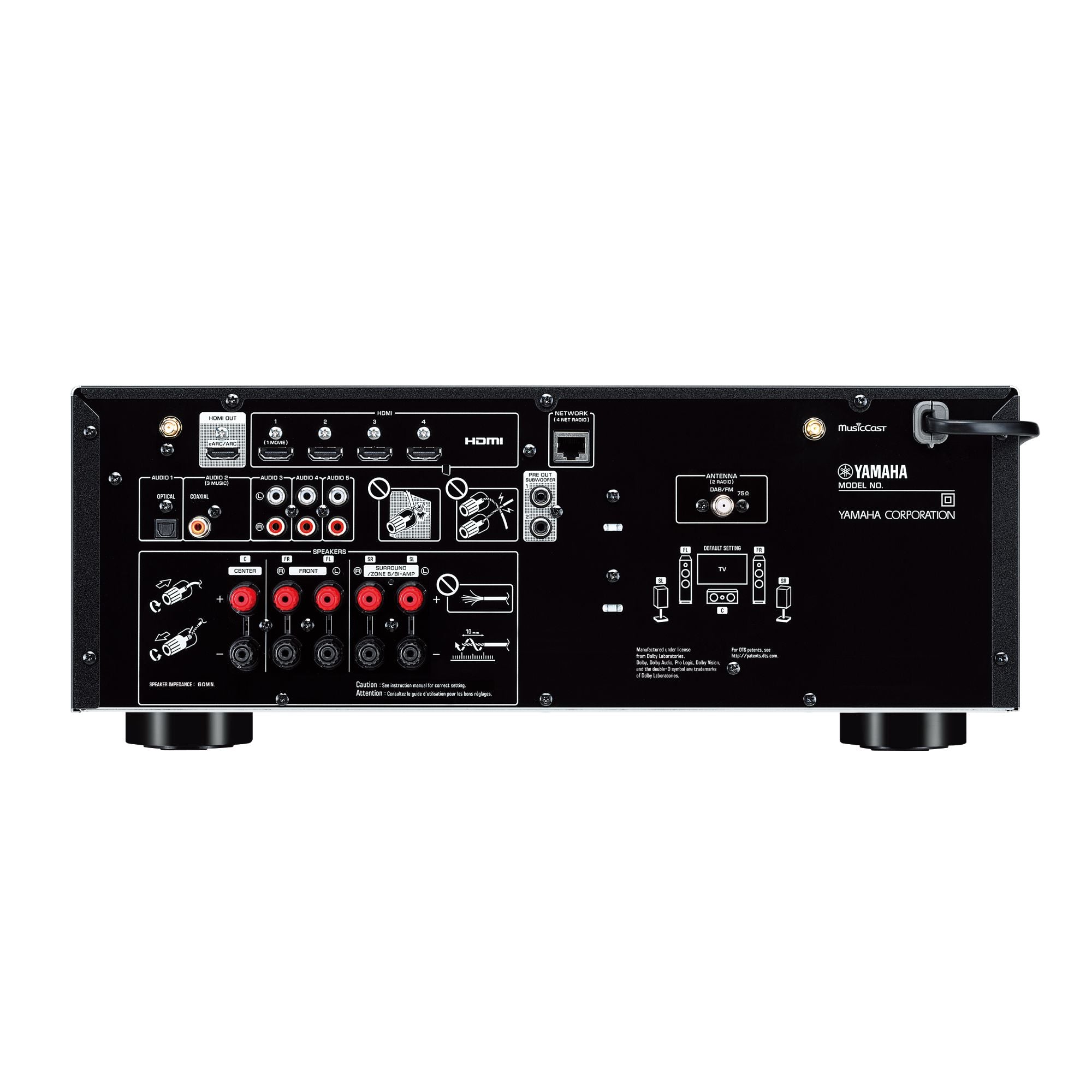

| HDMI Inputs/Outputs |
4 inputs / 1 output, HDMI 2.1 with eARC, HDCP 2.3 :contentReference[oaicite:3]{index=3} |
| Resolution Support |
4K/120Hz, 8K/60Hz via firmware update; supports Dolby Vision, HDR10+, ALLM, VRR :contentReference[oaicite:4]{index=4} |
|
NETWORK & STREAMING
|
| Wireless |
Wi-Fi (2.4/5 GHz), Bluetooth, AirPlay 2, MusicCast multi-room :contentReference[oaicite:5]{index=5} |
| Streaming Services |
Spotify, Pandora, TIDAL, Amazon Music HD, SiriusXM, Deezer, Napster, Qobuz :contentReference[oaicite:6]{index=6} |
|
CALIBRATION & CONTROL
|
| Room Calibration |
YPAO automatic calibration with included mic :contentReference[oaicite:7]{index=7} |
| App & Voice Control |
MusicCast app, Alexa, Google Assistant, Siri (via AirPlay 2) :contentReference[oaicite:8]{index=8} |
|
PHYSICAL DETAILS
|
| Dimensions (W × H × D) |
17-1/8″ × 6-3/4″ × 14-7/8″ (antenna up: H 9-5/8″) :contentReference[oaicite:9]{index=9} |
| Weight |
19.4 lb (8.8 kg) :contentReference[oaicite:10]{index=10} |
