Features & Specifications
|
GENERAL
|
Model |

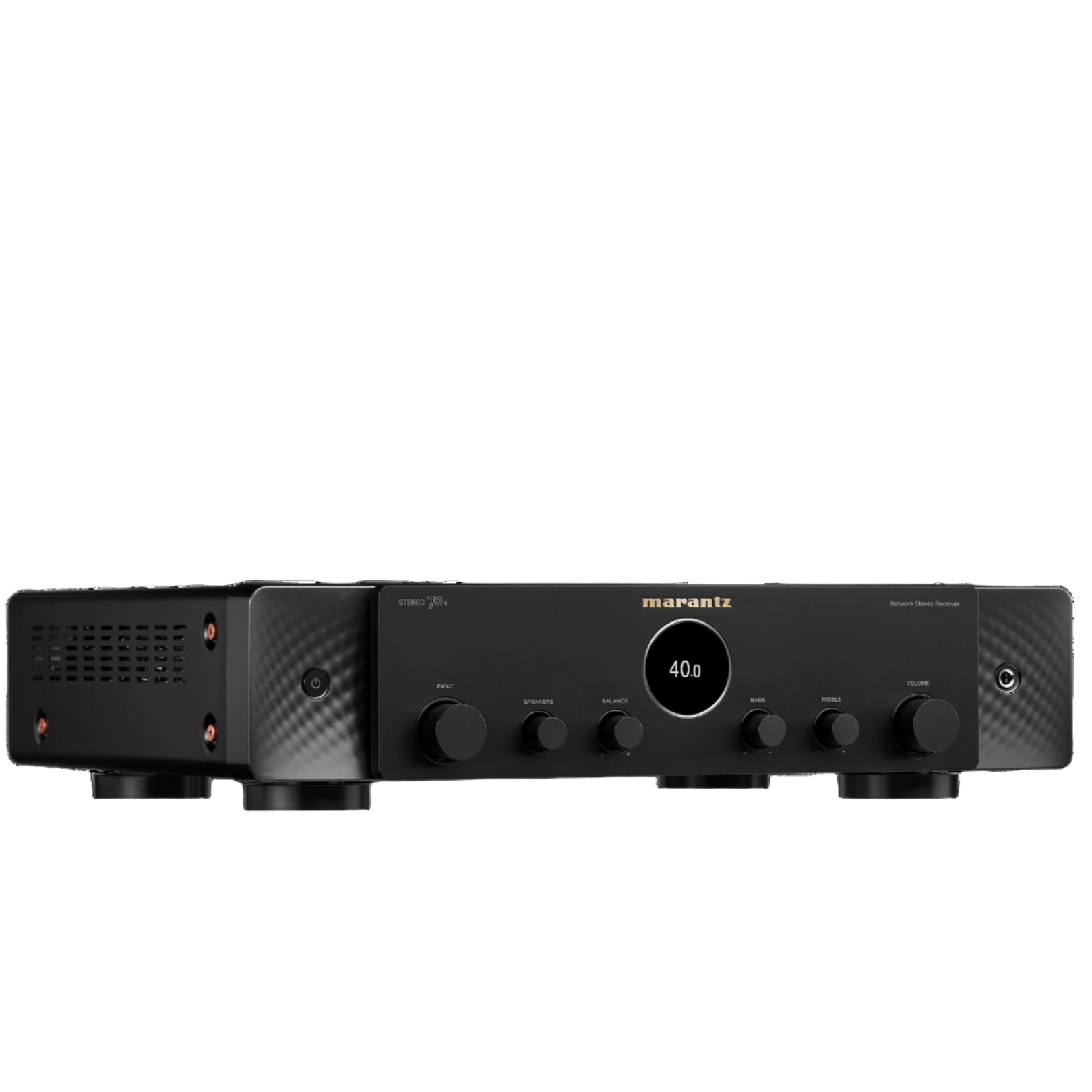

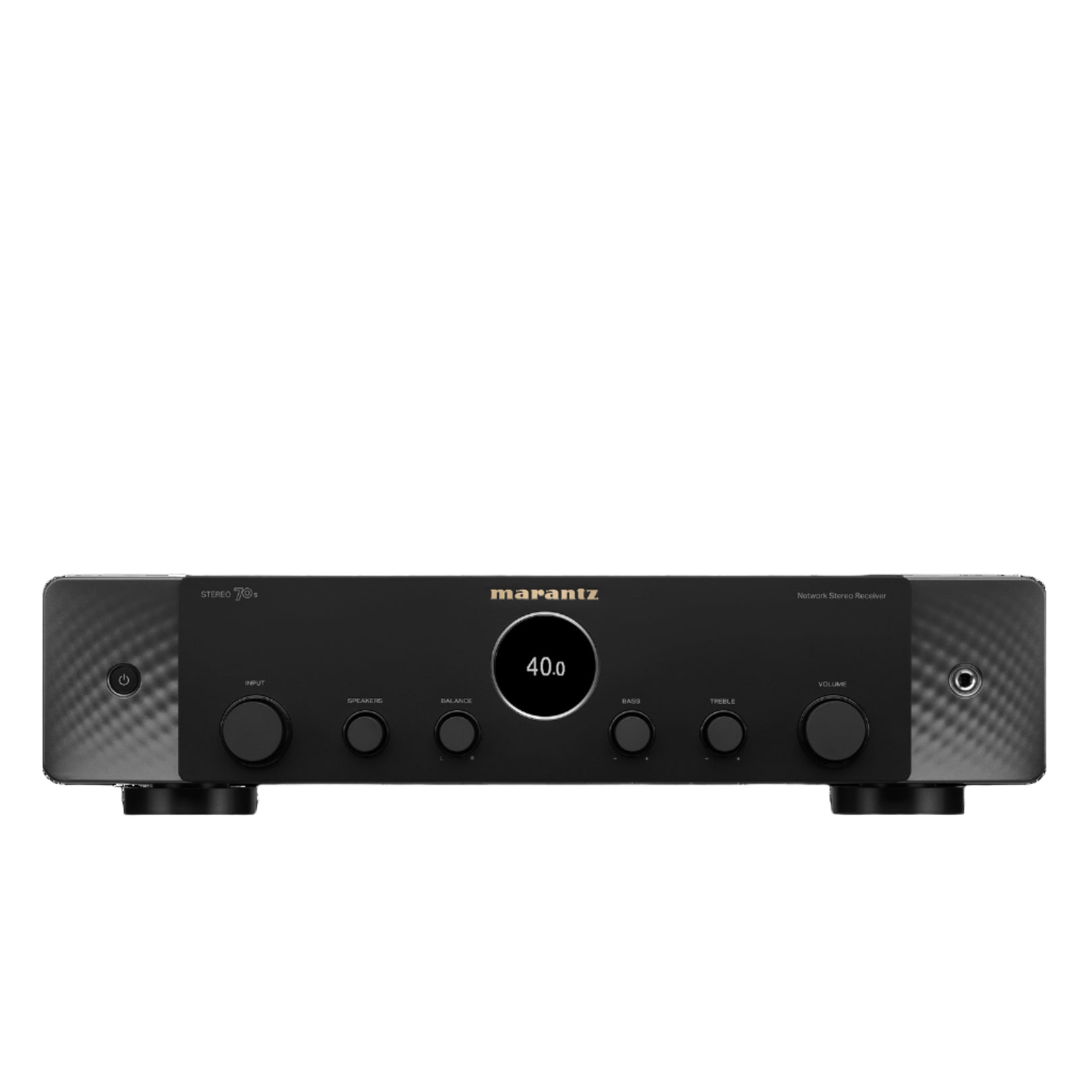

Marantz Stereo 70s |
Channels |
Slimline 2.2-Channel Receiver |
Design |
Compact, AV-friendly slim chassis |
AMPLIFICATION
|
Power Output (2-ch, 8 Ω) |
75 W per channel (20 Hz–20 kHz, 0.08 % THD) |
Power Output (2-ch, 6 Ω) |
100 W per channel (1 kHz, 0.7 % THD) |
Power Output (1-ch, 6 Ω) |
150 W (1 kHz, 10 % THD) |
Amplifier Design |
Discrete Class-A/B |
AUDIO & VIDEO FEATURES
|
HDMI Inputs / Output |
6 / 1 (includes Infra-ARC; 3 inputs support 8K); upscales 1080p & 4K to 8K |
HDR Formats |
HDR10, HDR10+, Dolby Vision, HLG, Dynamic HDR |
Gaming Support |
ALLM, VRR, QFT, HDMI standby pass-through |
Subwoofer Outputs |
2 (with adjustable crossover settings) |
INPUTS & CONNECTIVITY
|
Analog & Phono Inputs |
3 RCA analog, MM Phono input with ground |
Digital Inputs |
1 Optical, 1 Coaxial, USB-A |
Preamp & Multi-Room Outputs |
2.2 Preamp outputs, Analog multi-room out, Dual subwoofer outs |
NETWORK & STREAMING
|
Wireless & Network |
Wi-Fi & Ethernet; HEOS built-in; Bluetooth (w/ headphone transmission) |
Streaming Services |
AirPlay 2, Spotify Connect, Amazon Music, TIDAL, TuneIn, Roon Tested |
MODERN FEATURES
|
High-Res Audio Support |
PCM up to 24-bit/192 kHz, DSD 2.8 & 5.6 MHz, FLAC/WAV/ALAC gapless |
Amplifier Tech |
Custom HDAM modules, Pure Direct, Gold-plated RCA |
Extras |
AM/FM tuner, remote, detachable antennas, setup screen, sleep/ECO modes |
PHYSICAL & POWER
|
Dimensions (W × H × D) |
442 × 109 × 378 mm (17.4″ ×4.3″ ×14.9″) |
Weight |
8.5 kg (18.5 lb) |
