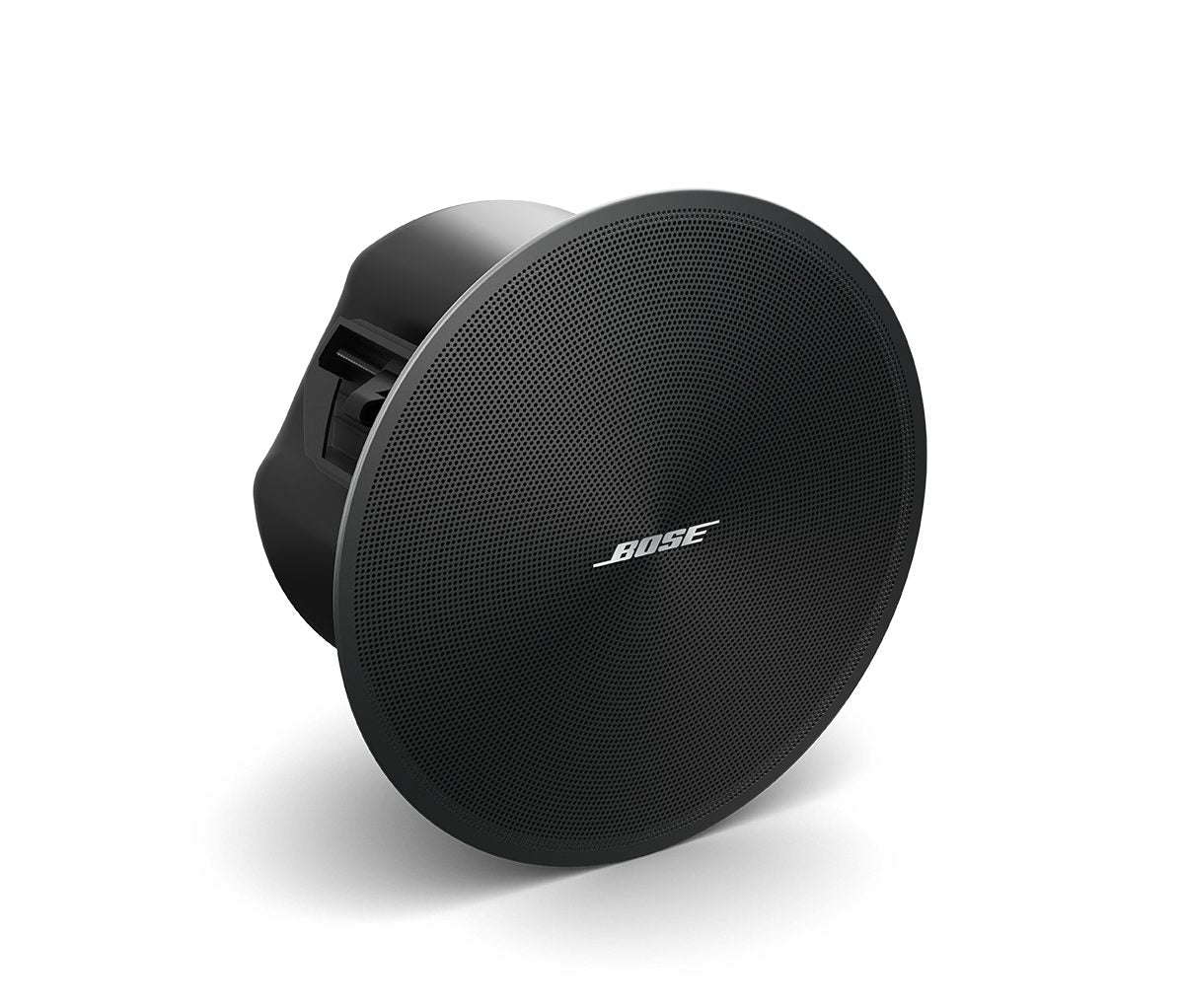

Black Bose speaker on a white background

Black helmet with a visor on a white background

Black plastic component on a white background

Bose DesignMax DM3C in-ceiling Speaker (Pair)

Bose DesignMax DM3C in-ceiling Speaker (Pair)

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Rs. 61,500.00 ~~Rs. 65,930.00~~

6% OFF

Discreet Design with Premium Sound The Bose DesignMax DM3C is a compact in-ceiling loudspeaker designed to deliver clear, balanced sound with a discreet aesthetic. Perfect for background music and voice applications, it blends seamlessly into ceilings while ensuring natural tonal quality. Versatile Performance for Commercial Spaces With wide 130° coverage...

Categories : Best Sellers, Bose, InCeiling/Atmos Speakers, Newest Products, Speaker cables, Speaker stands

Bose DesignMax DM3C in-ceiling Speaker (Pair)

Overview
Technical Specification

Discreet Design with Premium Sound

The Bose DesignMax DM3C is a compact in-ceiling loudspeaker designed to deliver clear, balanced sound with a discreet aesthetic. Perfect for background music and voice applications, it blends seamlessly into ceilings while ensuring natural tonal quality.

Versatile Performance for Commercial Spaces

With wide 130° coverage and a 3.5" woofer, the DM3C offers excellent dispersion and smooth frequency response. Ideal for retail, restaurants, offices, and hospitality environments, it installs easily with Euroblock connectors and integrates into both low-impedance and high-impedance systems.

Product Highlights:

Design Type: 2-way in-ceiling speaker with discreet flush-mount design
Frequency Response: 75 Hz – 20 kHz
Sensitivity: 86 dB SPL (1W/1m)
Impedance: 8 Ω nominal (compatible with 70/100V systems)
Power Handling: 30 W continuous, 120 W peak
Drivers: 3.5″ woofer + 0.75″ coaxial tweeter
Dispersion: 130° conical coverage for even sound distribution
Grille: Paintable magnetic grille for seamless installation
Applications: Background/foreground music, paging, and voice reinforcement
Dimensions (Diameter × Depth): 21.2 × 10.2 cm
Weight: 2.7 kg

Features & Specifications
GENERAL & AUDIO DESIGN
Model	Bose Professional DesignMax DM3C (In-Ceiling, pair)
Drivers	3.25-in (83 mm) woofer + 0.75-in (20 mm) neodymium coaxial tweeter in Dispersion Alignment system
AUDIO PERFORMANCE
Frequency Response (-3 dB)	85 Hz – 19 kHz
Frequency Range (-10 dB)	75 Hz – 20 kHz
Coverage Angle	135° conical (1–4 kHz & 1–10 kHz)
Sensitivity (1 W @ 1 m)	83 dB
Max SPL @ 1 m (Continuous / Peak)	≈ 98 dB / ≈ 104 dB
Power Handling (RMS / Peak)	30 W / 120 W
Crossover	1.7 kHz passive 2-way
POWER OPTIONS & IMPEDANCE
Impedance	8 Ω (transformer bypass)
Transformer Tap Settings	70 V: 3, 6, 12, 25 W, bypass 100 V: 6, 12, 25 W, bypass
INSTALLATION & CONNECTORS
Mounting	QuickHold spring-loaded arms + 3 safety-cable tabs; includes tile bridge & plenum-rated backcan
Connector	Front-panel Euroblock (6-pin) with loop-through
PHYSICAL & ENVIRONMENTAL
Dimensions (Grille Ø × Depth)	255 × 154 mm (10 × 6 in)
Backcan (Ø × Depth) / Cutout	203 × 144 mm / 208 mm (8.2 in)
Max Ceiling Thickness	39 mm (1.5 in)
Weight (each w/ grille)	≈ 2.7 kg (5.9 lb)
Certifications	UL-1480A, UL-2043 (plenum), NFPA 70/90A, CE
