Bose Professional DesignMax DM3SE Surface-Mount Speaker (Pair)

Bose Professional DesignMax DM3SE Surface-Mount Speaker (Pair)

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Rs. 78,500.00 ~~Rs. 84,342.00~~

6% OFF

Compact Design with Powerful, Clear Sound The Bose DesignMax DM3SE is a versatile surface-mount speaker that combines compact size with impressive sound performance. Equipped with a 3.5″ woofer and a ¾″ coaxial tweeter, it delivers crisp highs, clear mids, and surprising bass depth for its size—perfect for background and foreground...

Categories : Best Sellers, Bose, Newest Products, On- Wall Speakers, Outdoor Speakers, Speaker cables, Speaker stands, Speakers

Bose Professional DesignMax DM3SE Surface-Mount Speaker (Pair)

Overview
Technical Specification

Compact Design with Powerful, Clear Sound

The Bose DesignMax DM3SE is a versatile surface-mount speaker that combines compact size with impressive sound performance. Equipped with a 3.5″ woofer and a ¾″ coaxial tweeter, it delivers crisp highs, clear mids, and surprising bass depth for its size—perfect for background and foreground music in commercial and residential spaces.

Weather-Resistant Build & Easy Installation

Designed for flexibility, the DM3SE features an IP55 weather-resistant rating, making it suitable for both indoor and outdoor use. Bose’s QuickHold mounting system ensures fast, secure installation while minimizing strain and setup time. With sleek aesthetics available in black or white, the DM3SE blends seamlessly into any environment while offering reliable performance.

Product Highlights:

Design Type: 2-way surface-mount loudspeaker for indoor/outdoor use
Drivers: 3.5″ polypropylene woofer with butyl rubber surround, ¾″ coaxial titanium tweeter
Frequency Response: 75 Hz – 20 kHz
Power Handling: 60 W peak / 30 W continuous (IEC)
Impedance / Taps: 8 Ω or 70/100V transformer with multiple tap settings
Sensitivity: 84 dB SPL (1W @ 1m)
Maximum SPL: 99 dB (continuous), 105 dB (peak)
Coverage Pattern: 130° × 130°
Weather Rating: IP55 dust- and water-resistant

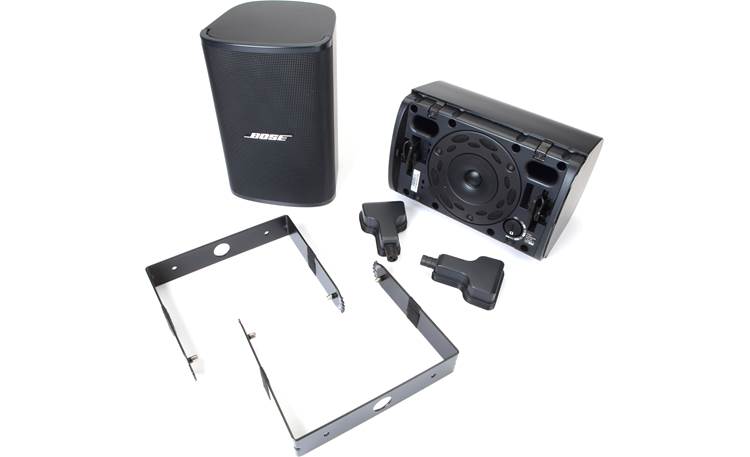

Mounting System: Bose QuickHold U-bracket for secure, easy installation
Dimensions (H × W × D): 220 × 146 × 136 mm
Weight: 2.8 kg each

Features & Specifications
GENERAL & DESIGN
Model	Bose DesignMax DM3SE (Surface-Mount, IP55 Rated)
Drivers	3.25″ weather-treated woofer + 0.75″ neodymium coaxial tweeter in Dispersion Alignment system
Mounting & Finish	QuickHold U-bracket; minimum-bezel grille; black or white (paintable), removable logo
PERFORMANCE
Frequency Response (±3 dB)	85 Hz – 20 kHz
Frequency Range (–10 dB)	75 Hz – 20 kHz
Sensitivity (1 W @ 1 m)	86 dB
Max SPL @ 1 m (Peak)	101 dB
Power Handling	30 W continuous / 120 W peak
Impedance	8 Ω (transformer bypass)
Transformer Taps	70 V: 3 W, 6 W, 12 W, 25 W 100 V: 6 W, 12 W, 25 W
Coverage (H × V)	140° × 140° (conical)
Crossover	Passive 2-way, 1.7 kHz
ENVIRONMENTAL & PHYSICAL
Ingress Protection	IP55 (outdoor-rated)
Operating Temperature	–25 °C to 70 °C
Dimensions (H × W × D)	9.1″ × 6.1″ × 6.1″ (232 × 155 × 155 mm) / 6.7″ (171 mm) with bracket
Weight (each, with grille)	5.6 lb (2.8 kg)
