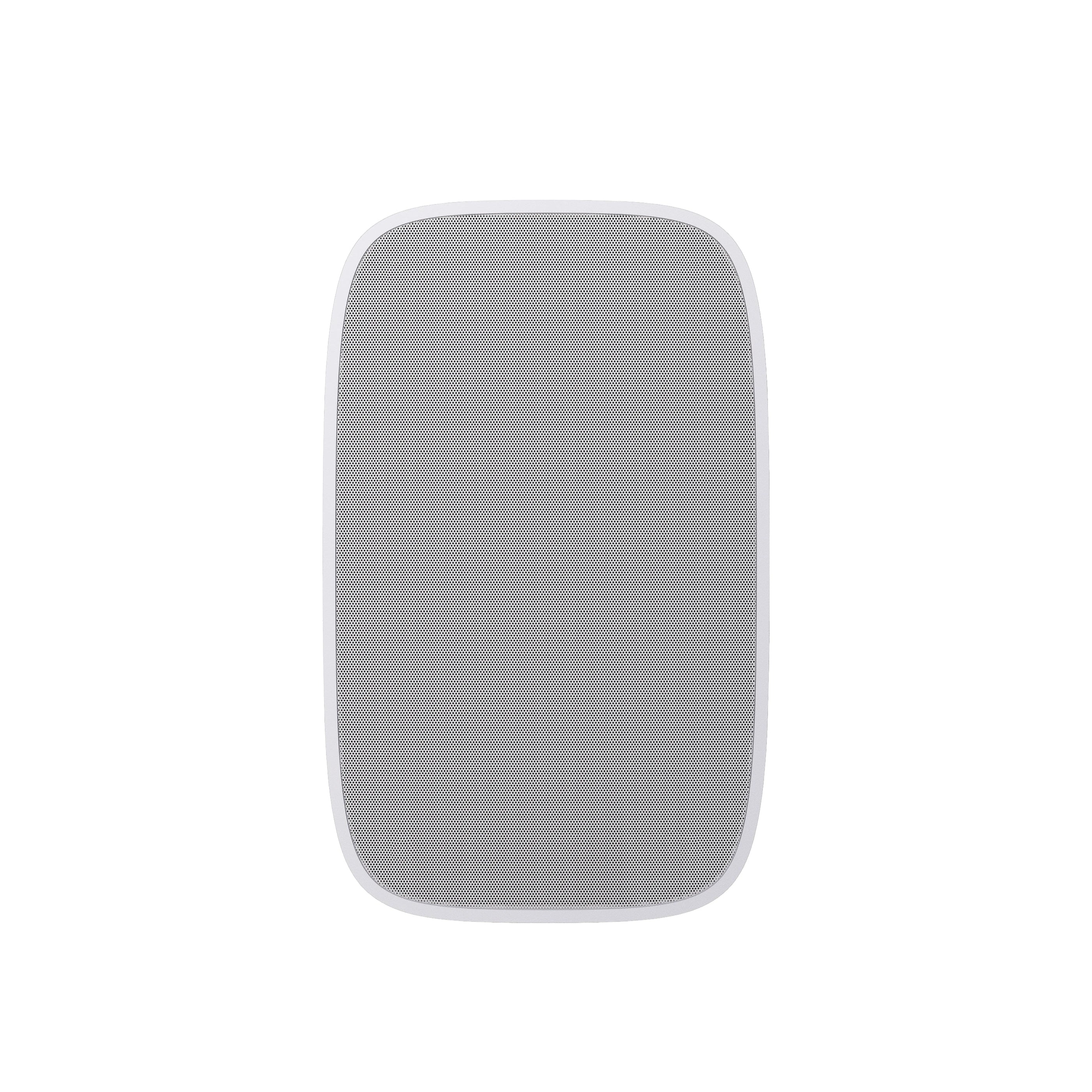

Fonestar SONORA 4TB - Surface Speaker (Pair)

Fonestar SONORA 4TB - Surface Speaker (Pair)

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Rs. 28,980.00

A Rugged Speaker Built for Clear Outdoor/PA Performance The Sonora 4TB is a surface-mount loudspeaker with both 100-V line transformer and low-impedance options, designed for background music, public address, or emergency announcements. With a 4″ polypropylene woofer and a 1″ tweeter, it delivers crisp, distortion-free sound from 120 Hz up...

Categories : Best Sellers, Newest Products, On- Wall Speakers, Outdoor Speakers

Fonestar SONORA 4TB - Surface Speaker (Pair)

Overview
Technical Specification

A Rugged Speaker Built for Clear Outdoor/PA Performance

The Sonora 4TB is a surface-mount loudspeaker with both 100-V line transformer and low-impedance options, designed for background music, public address, or emergency announcements. With a 4″ polypropylene woofer and a 1″ tweeter, it delivers crisp, distortion-free sound from 120 Hz up to 20,000 Hz, great for both voice and music. It’s built tough for outdoor environments with salt mist and waterproof protection.

Versatile Mounting & Compliance for Safety & Installations

This speaker includes an adjustable weather-proof mount, stainless steel screws, and a safety steel cable for secure installation. Rated IP-66 for protection against dust, rain, and harsh marine environments, it’s optimized for commercial installations—including voice-alarm systems thanks to compliance with EN 54-24 in the “EN” version. Multiple power taps (30 W, 15 W, 7.5 W, 3.75 W) allow matching to different zones.

Product Highlights:

Type: 2-way surface loudspeaker with 100-V line transformer + 8-Ω (low impedance) mode
Power Handling: 60 W max, 30 W RMS
Drivers: 1 × 4″ polypropylene woofer, 1 × 1″ tweeter
Frequency Response: 120 Hz – 20,000 Hz
Impedance / Power Taps (100 V):
• 30 W RMS @ 100 V (333 Ω)
• 15 W RMS @ 100 V (667 Ω)
• 7.5 W RMS @ 100 V (1,333 Ω)
• 3.75 W RMS @ 100 V (2,667 Ω)
• Low-Z 8 Ω mode
Sensitivity: ~ 83-84.9 dB @ 1 W/1 m
Maximum SPL: ~ 96-97.6 dB at full power / 1 m
Coverage Angle: Horizontal / Vertical approx. 145° / 130° at 1 kHz (-6 dB)
Protection: IP-66 rating, UV-resistant ABS body, aluminium grille, corrosion-resistant fixtures; salt mist tested

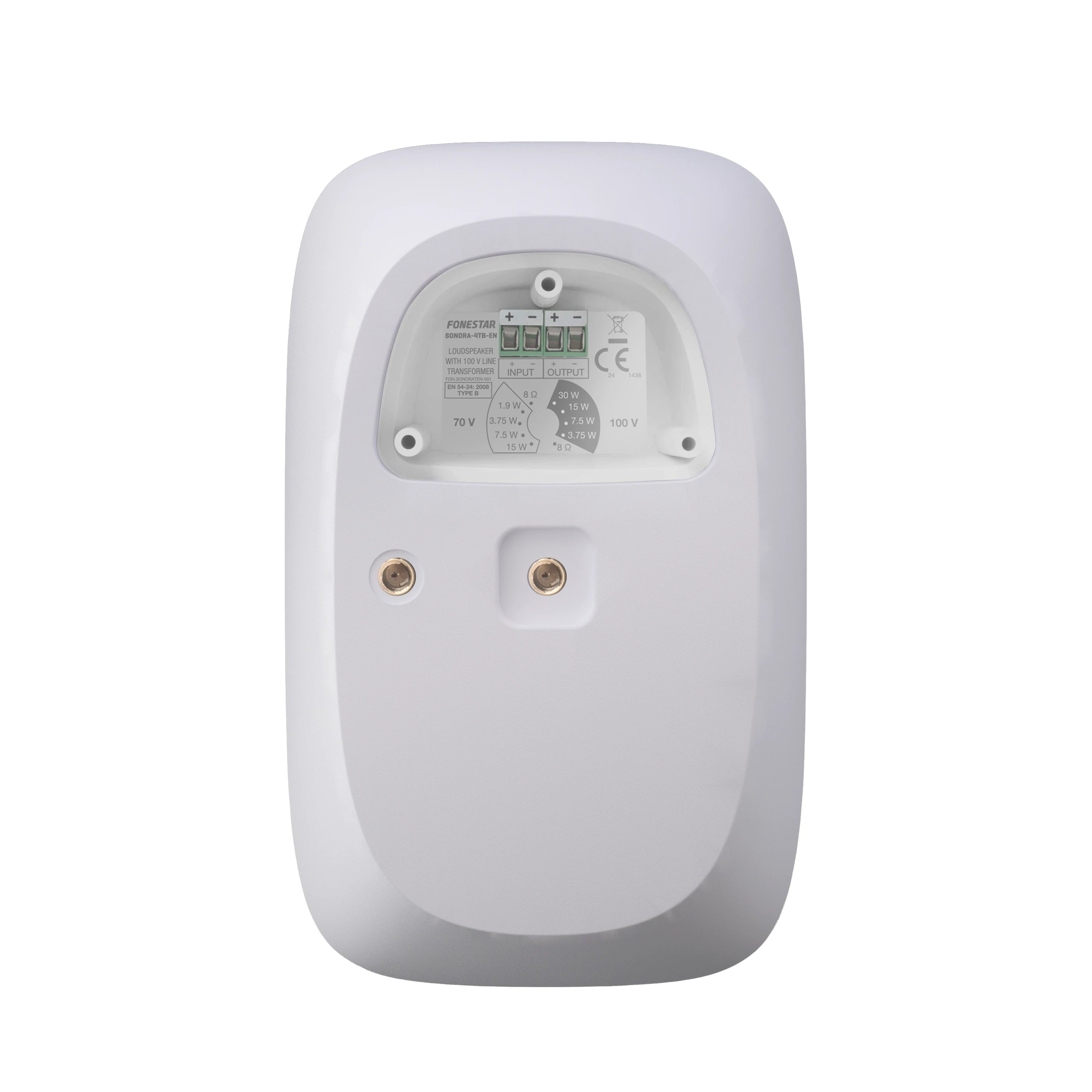

Switch / Selector: W-selector for switching between high-impedance (100 V / 70 V) taps and low-impedance mode
Connectors: Euroblock terminals in/out, for cables 0.25-2.5 mm²
Temperature Range: -10°C to +60°C
Finish: ABS housing; aluminium grille; weather-treated mount; stainless steel screws
Dimensions: 125 mm × 202 mm × approx. 125 mm depth (speaker-only)
Weight: ~ 1.5 kg each

Features & Specifications
GENERAL
Model	Fonestar SONORA 4TB
Type	Surface Speaker with 100 V line transformer and low impedance
Outdoor rating / Protection	IP-66 Outdoor / Marine Environments
AUDIO PERFORMANCE
Power Handling	60 W max / 30 W RMS
Drivers	1 × 4″ polypropylene woofer, 1 × 1″ tweeter
Frequency Response	120 Hz – 20,000 Hz
Sensitivity	84.9 dB @ 1 W/1 m
SPL (Max)	≈ 97.6 dB @ max W / 1 m
IMPEDANCE & TRANSFORMER OPTIONS
Low Z	8 Ω
100 V Line Taps	30 W / 15 W / 7.5 W / 3.75 W
PHYSICAL & INSTALLATION
Dimensions (Speaker Body)	125 × 202 × 125 mm
Weight	1.5 kg each

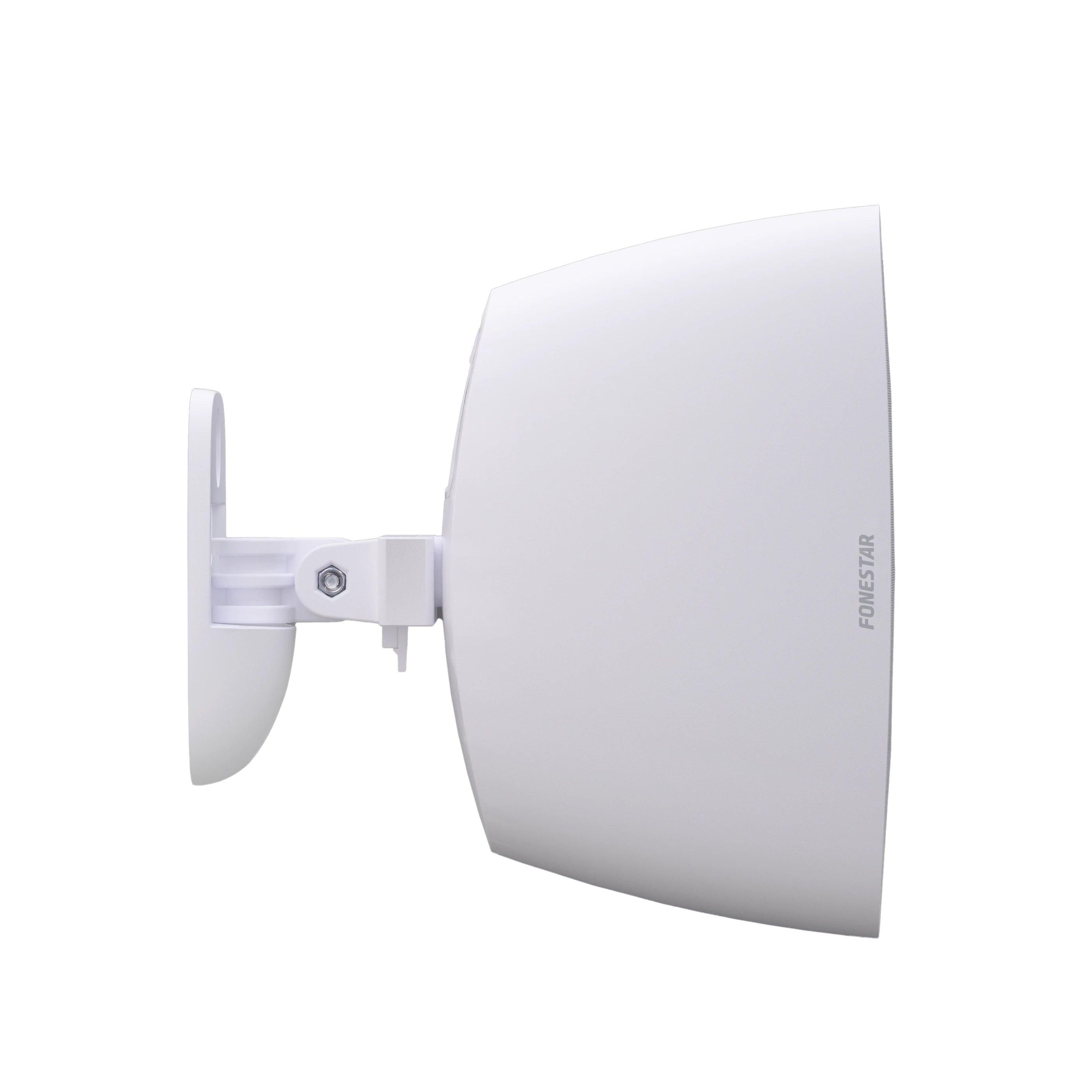

Mounting	Weatherproof adjustable bracket ±60°, stainless steel screws, safety cable
Connectors	Euroblock in/out, cable 0.25-2.5 mm² cross section
ADDITIONAL FEATURES
Weatherproof Materials	ABS UV-resistant body, aluminum grille
Protection Standards	IP-66; salt mist environment tested
