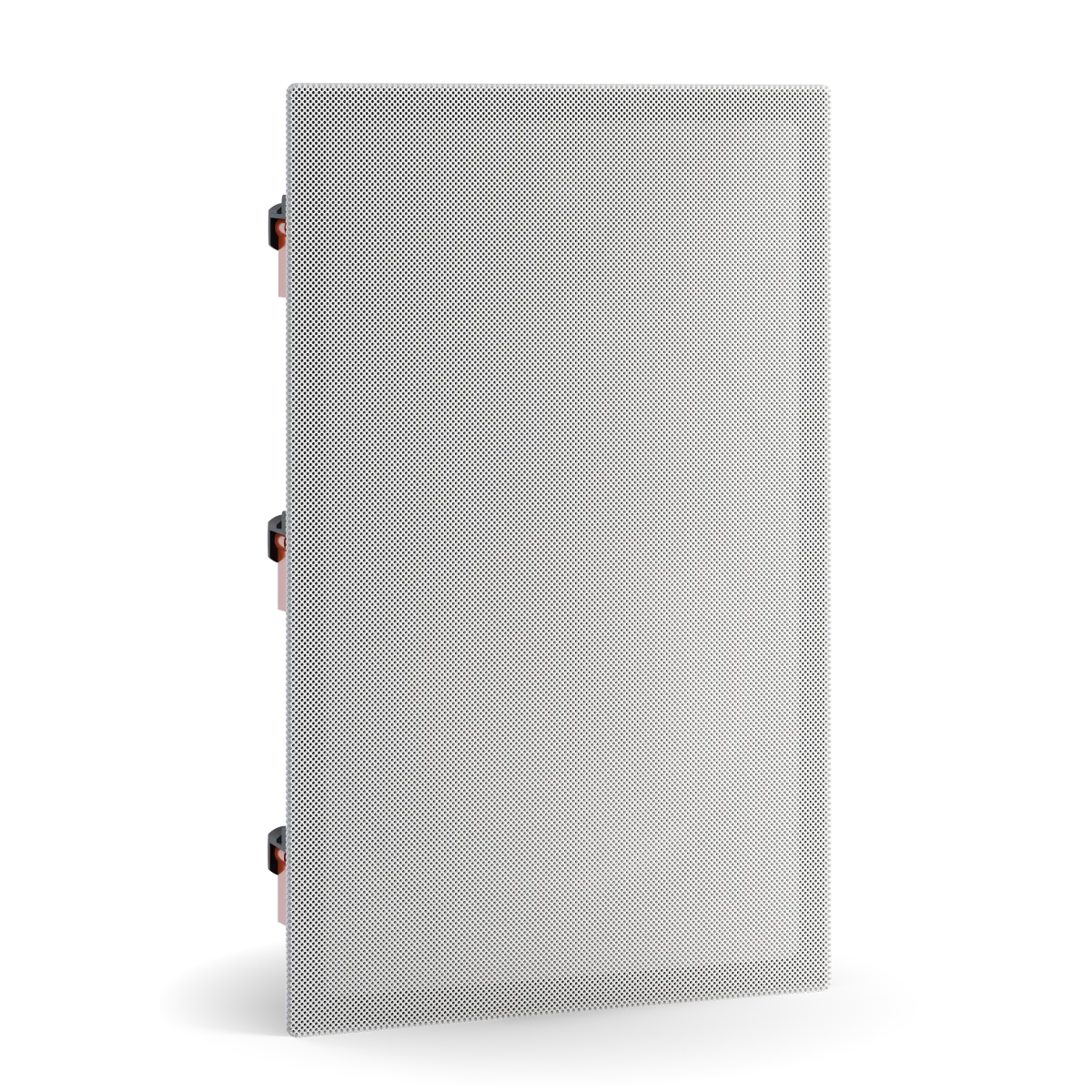

Rectangular metal panel with a textured surface on a white background

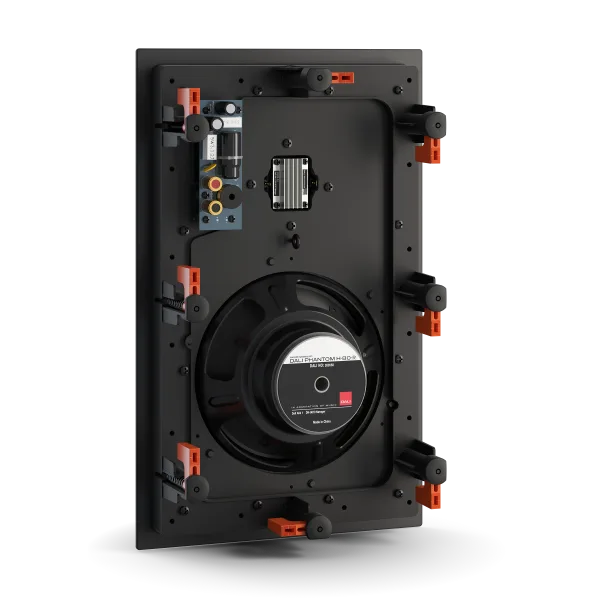

Back view of a black speaker with visible branding on a white background

Dali Phantom H-80R - In-Wall Speaker (Pair)

Dali Phantom H-80R - In-Wall Speaker (Pair)

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Rs. 114,950.00 ~~Rs. 121,000.00~~

5% OFF

High-Performance In-Wall Audio with Rotatable Woofer The DALI PHANTOM H-80R In-Wall Speaker Pair delivers exceptional sound quality with a clever design twist—its 8" woofer can be rotated to perfectly align with your listening position, ensuring optimal audio dispersion. Featuring DALI’s signature wood fibre cone for natural, detailed sound and an...

Categories : Best Sellers, In - Wall Speakers, Newest Products

Dali Phantom H-80R - In-Wall Speaker (Pair)

Overview
Technical Specification

High-Performance In-Wall Audio with Rotatable Woofer

The DALI PHANTOM H-80R In-Wall Speaker Pair delivers exceptional sound quality with a clever design twist—its 8" woofer can be rotated to perfectly align with your listening position, ensuring optimal audio dispersion. Featuring DALI’s signature wood fibre cone for natural, detailed sound and an ultra-light 28mm soft dome tweeter for smooth, extended highs, the H-80R brings cinematic depth and musical clarity to any room while staying virtually invisible in your wall.

Flexible Placement, Immersive Sound

Engineered for both stereo and home theater applications, the PHANTOM H-80R offers a wide frequency response, impressive bass, and excellent power handling. Its slim frame, paintable magnetic grille, and robust build make it ideal for living rooms, dedicated theaters, or even high-end commercial spaces.

Product Highlights:

Type: 2-way in-wall loudspeaker
Tweeter: 28mm ultra-light soft dome
Woofer: 8" wood fibre cone, rotatable for placement flexibility
Frequency Range: 46Hz – 25,000Hz
Sensitivity: 89 dB
Nominal Impedance: 6 ohms
Recommended Amplifier Power: 30 – 200W
Crossover Frequency: 2,300Hz
Enclosure: Open back for in-wall integration
Dimensions (H x W x D): 354 x 354 x 106 mm
Cut-out Dimensions: 330 x 330 mm
Mounting Depth: 99 mm
Weight: 3.5 kg / 7.7 lb each

Features & Specifications
CABINET & DESIGN
Enclosure Type	Open back (rear-ported), solid MDF baffle
Mounting System	Dog-leg clamps for quick installation
DRIVER DETAILS
Woofer	1 × 8″ wood fibre cone
Tweeter	1 × 28 mm soft dome
PERFORMANCE
Frequency Range (±3 dB)	46 Hz – 25 kHz
Sensitivity	90 dB (2.83 V/1 m)
Nominal Impedance	6 Ω
Maximum SPL	109 dB
CROSSOVER & POWER
Crossover Frequency	2,350 Hz
Recommended Amplifier Power	30 – 200 W
DIMENSIONS & OTHER INFO
Dimensions (H × W × D with grille)	452 × 284 × 107 mm
Cut-Out Dimensions (H × W)	427 × 260 mm
Weight (each)	3.7 kg
